T-Plus Single Spindle Series
T-PLUS 42/52/60
- Single Spindle with Servo Turret.
- Servo Turret as standard accessory to increase turning efficiency.

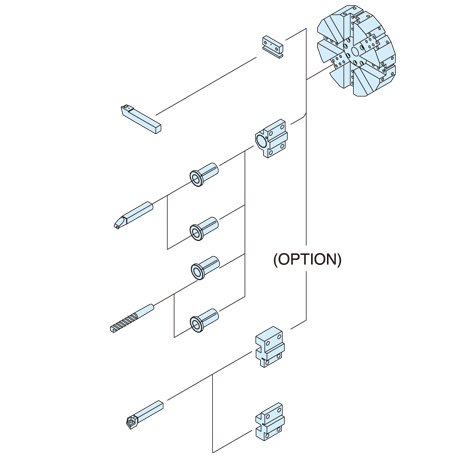

TURRET

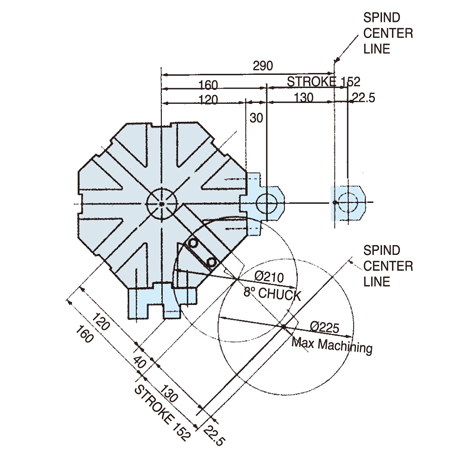

Working Range
Standard Accessories
- Mitsubishi Controller/1 set
- Main spindle : 3 jaws hydraulic chuck or collet chuck/1 pc
- 8-stations servo turret/1 pc
- Foot chuck switch/1 pc
- Working light/1 pc
- Coolant device/1 set
- Tool holder bushing: 8/10/12/16/20/25mm/2 pc/ea--- for ø32mm
- Leveling bolts and pads/6 pcs
- Tools and tool box/1 set
Optional Accessories
- Chip conveyer+Bucket
- Part conveyor
- Y axis
- Main spindle : CF axis orientation
- 12-stations power turret
- Tail-stock(movement is manual or auto
Specification
| Items | T-PLUS 42 | T-PLUS 52 | T-PLUS 60 |
|---|---|---|---|
| Max. machining dia.(with 3 jaws chuck) | Ø130 mm | Ø300 mm | Ø350 mm |
| Max. machining length (with tail-stock) | 400 mm | 400 mm | 400 mm |
| Swing Over Cross Slide | 350 mm | 350 mm | 350 mm |
| X Axis | 200 mm | 200 mm | 200 mm |
| Z Axis | 480 mm | 480 mm | 480 mm |
| Opt. Y axis travel | 70 mm | 70 mm | 70 mm |
| Bore of spindle | 55 mm | 60 mm | 88 mm |
| Max. bar feeding dia. | 42 mm | 52 mm | 60/80(opt.) mm |
| Spindle Nose | A2-5 | A2-6 | A2-6/A2-8(opt.) |
| Spindle chuck | 6" | 8" | 10”/12”(opt.) |
| Spindle Motor | 11 kw / 15 H.P. | 11 kw / 15 H.P. | 15 kw / 20 H.P. |
| Z axis motor | 1kW | 1kW | 1kW |
| X axis / Opt. Y axis motor | 1.5 kw | 1.5 kw | 1.5kW |
| Opt. driven tools motor for power turret | 3.7kW/5HP | 3.7kW/5HP | 3.7kW/5HP |
| Spindle Speed | 100-6000 rpm | 100-4000 r.p.m. | 100-3500, 100-3000(opt.) rpm |
| Rapid traverse (X, Z axes) | 12 m/min | 12 m/min | 12 m/min |
| Min. input unit | 0.001 mm | 0.001 mm | 0.001 mm |
| Cutting tool size(opt. power turret) | □25(□20) | □25(□20) | □25(□20) |
| Max. bore size of tool | Ø32 mm | Ø32 mm | Ø32 mm |
| Coolant pump motor | 1 H.P. | 1 H.P. | 1 H.P. |
| Dimension(Attched Chip conveyor) | 340 x 189 x 184 cm | 340 x 189 x 184 cm | 340 x 189 x 184 cm |
| Dimension | 257 x 189 x 184 / 300 x 215 x 200 (opt. Y axis) cm | 257 x 189 x 184 / 300 x 215 x 200 (opt. Y axis) cm | 257 x 189 x 184 / 300 x 215 x 200 (opt. Y axis) cm |
| Weight | 3588 / 3788 (opt. Y axis) kg | 3628 / 3828 (opt. Y axis) kg | 3789 / 3989 (opt. Y axis) kg |
* We reserve the rights to change the design without any prior notification.
