Diamond 25/32/42 CSL Series

25/32/42 CSL

Video Online

Cross spindle and bevel driven tool holes will help you to do drilling, milling and tapping on cross side and bevel.
Cross travel sub-spindle design, the main and sub-spindle can work either one at a time or simultaneously for reduced machining duration.
This design bring multi-function front and rear machining.
The B-axis bevel driven tool holder can be rotated 360 degrees to facilitate bevel drilling, milling and tapping with the main and rear spindle.

Introduction

Discover the future of precision machining with our Sliding Head Turning solutions. These machines bring together Swiss Type CNC technology and advanced sliding head capabilities for unparalleled accuracy. Ideal for intricate parts and complex geometries, our Sliding Head Turning machines are engineered for high-speed, high-quality output. Elevate your machining process to new heights of efficiency with these cutting-edge systems.

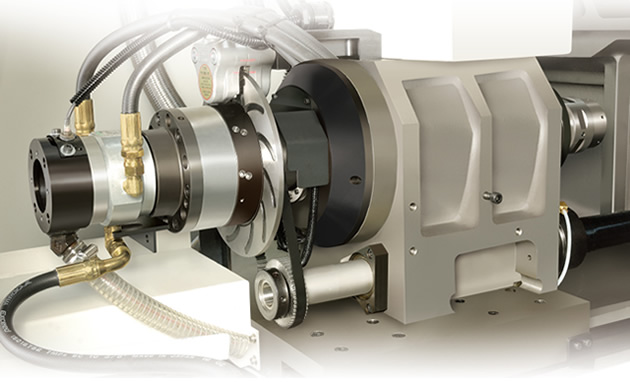

Main spindle is equipped with built-in motor, and the standard is equipped with C axis. A high-analytic CS axis is optional.

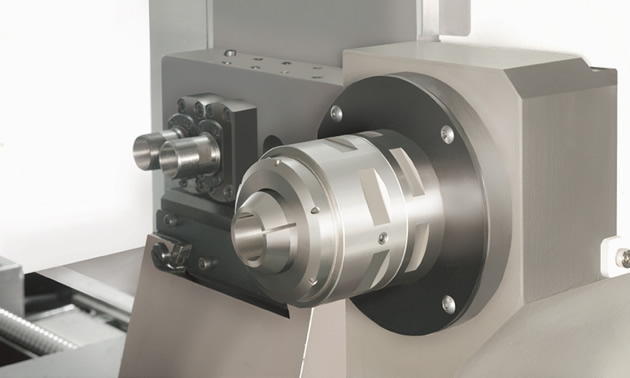

Sub-spindle is equipped with servo motor, and the standard is 5 degree indexing. C-axis is optional.

There are 2 fixed and 2 power drills on the tool holder beside the sub-spindle, which can move forward and backward. It is suitable for deep hole processing.

Examples

Model: Swiss Type CNC Lathe (Sliding Head Turning) - DIAMOND 25/32/42 CSL

Standard Accessories

Controller : Fanuc 0i –TF PLUS / Fanuc 31i-B (Opt. Y2 axis)
Main spindle C axis orientation
Back spindle 5º orientation
Working light
Coolant system
Part off detective sensor
Part catcher
Live bushing

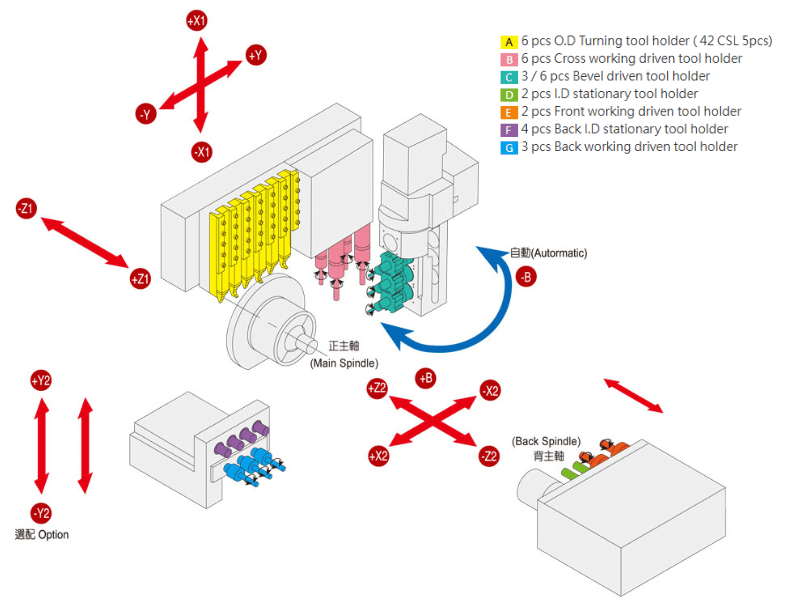

O.D turning tool holder ----- 5~7pcs
Front I.D stationary tool holder ----- 2~3pcs
Back I.D stationary tool holde ----- 4pcs

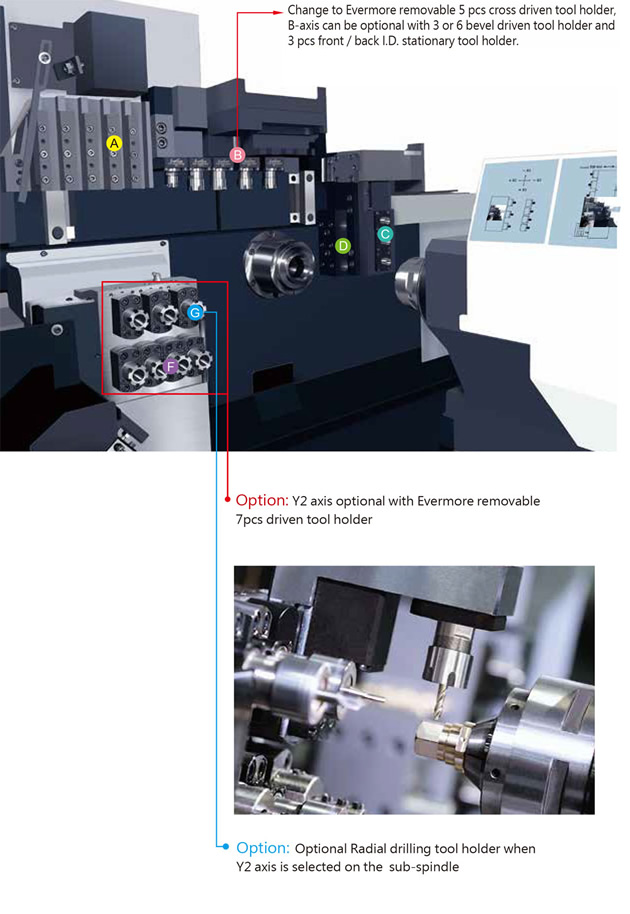

Cross working driven tool holder ----- 6 / 5pcs (with Evermore)

Optional Accessories

Controller : Mitsubishi M80 / Mitsubishi M830 (Opt. Y2 axis)
Front working driven tool holder ----- 2pcs
360゜b-axis bevel driven tool holder ----- 3 / 6 / 8pcs
Back working driven tool holder ----- 3 / 7 pcs (Opt. Evermore)
CS axis ( 0.001° orientation-Fanuc / 0.01° orientation-Mitsubishi) ----- Main spindle
C axis ----- Sub-spindle
Chip conveyer + Bucket
Rough material bushing
Y2 Axis

Specification

Items	25 CSL	32 CSL	42 CSL
Working Range
Max. Turning Dia.	Ø26mm	Ø32mm	Ø42mm
Max. maching length per chucking	250mm	250mm	250mm
Max. Drilling Dia.	Ø26mm	Ø26mm	Ø26mm
Max. Tapping Dia	M16	M16	M16
Tooling System
O.D.Tooling(B axis with 3/6 pcs)	6	6	5
O.D.Tooling(B axis with 8 pcs)	7	7	6
O.D.Tool Dimension	□16x16x120	□16x16x120	□16x16x120
(Front) I.D. Tooling(B axis with 3/6 pcs)	2	2	2
(Front) I.D. Tooling(B axis with 8 pcs)	3	3	2
Tool Dimension	13 mm (ER20)	13 mm (ER20)	13 mm (ER20)
(Back) I.D.Tooling	4	4	4
Tool Dimension(B axis with 3 pcs)	13 mm (ER20)	13 mm (ER20)	13 mm (ER20)
Cross Tooling	6	6	6
Tool Dimension	13 mm (ER20)	13 mm (ER20)	13 mm (ER20)
Speed	200~6000rpm	200~6000 r.p.m.	200~6000 r.p.m.
(Opt.) Bevel Drill / Mill Tooling(B axis with 3/6 pcs)	3/6	3/6	3/6
(Opt.) Bevel Drill / Mill Tooling(B axis with 8 pcs)	8	8	8
Tool Dimension(B axis with 3 pcs)	13mm (ER20)	13mm (ER20)	13mm (ER20)
Speed	100~6000rpm	100~6000rpm	100~6000rpm
(Opt.) Front Drilling Tooling	2	2	2
Tool Dimension	13mm (ER20)	13mm (ER20)	13mm (ER20)
Speed	200~6000rpm	200~6000rpm	200~6000rpm
(Opt.) Back Drilling Tooling	3	3	3
Tool Dimension	13mm (ER20)	13mm (ER20)	13mm (ER20)
Speed	100~4000rpm	100~4000rpm	100~4000rpm
Spindle
Spindle Hole Dia.	Ø26mm	Ø33mm	Ø42mm
Spindle Speed	200~7000rpm	200~7000rpm	200~5000rpm
Indexing	C axis	C axis	C axis
Back Spindle
Back Spindle Hole Dia.	Ø25mm	Ø33mm	Ø42mm
Back Spindle Speed	200~6000rpm	200~6000rpm	200~5000rpm
Indexing	5°	5°	5°
Max. length for front ejection	70mm	70mm	70mm
Max. workpiece projection length from the back spindle	120mm	120mm	120mm
Max.Back Drilling Dia.	Ø16mm	Ø16mm	Ø16mm
Max. Back Tapping Dia.	M12	M12	M12
Rapid Traverse
X1, Z1, Y1, X2, Z2 Axes	18 or 30 m/min	18 or 30 m/min	18 or 30 m/min
(Opt.) Y2 Axis	18 or 30 m/min	18 or 30 m/min	18 or 30 m/min
Motors
Main Spindle Motor	3.7/5.5kW	3.7/5.5kW	18.5/30kW
Back Spindle Motor	2.2kW	2.2kW	2.2kW
X1, Z1, Y1, X2, Z2 Axes Motor	1.2kW	1.2kW	1.2kW
(Opt.) Y2, B Axes Motor	0.75kW	0.75kW	0.75kW
Cross driven spindle Motor	2.2kW	2.2kW	2.2kW
(Opt.) Bevel driven spindle Motor(B axis with 3/6 pcs)	1kW	1kW	1kW
(Opt.) Bevel driven spindle Motor(B axis with 8 pcs)	2.2kW	2.2kW	2.2kW
(Opt.) Back driven spindle Motor	0.75kW	0.75kW	0.75kW
(Opt. Y2 Axis) Back driven spindle Motor	1kW	1kW	1kW
Coolant Pump	0.75kW x 2	0.75kW x 2	0.75kW x 2
Lubrication	4W x 2	4W x 2	4W x 2
Machine Dimensions
Center Height	960mm / 1020mm(a plug-in electrical cabinet)	960mm / 1020mm(a plug-in electrical cabinet)	960mm / 1020mm(a plug-in electrical cabinet)
Weight(Standard)	3988 / 4368(Opt. Y2)	3988 / 4368(Opt. Y2)	4088 / 4468(Opt. Y2)
Weight(a plug-in electrical cabinet)	4550 / 4930(Opt. Y2)	4550 / 4930(Opt. Y2)	4650 / 5030(Opt. Y2)
Machine Size(Standard)	3000x1540x1940 mm	3000x1540x1940 mm	3000x1540x1940 mm
Machine Size(a plug-in electrical cabinet)	3220x1800x2005 mm	3220x1800x2005 mm	3220x1800x2005 mm
Air
Air Pressure	5kg/cm	5kg/cm	5kg/cm
Air Supply	10L/min	10L/min	10L/min

* We reserve the rights to change the design without any prior notification.
