PLG-42/42L/52/60/75 Series

PLG-42/42L/52/60/75

Video Online

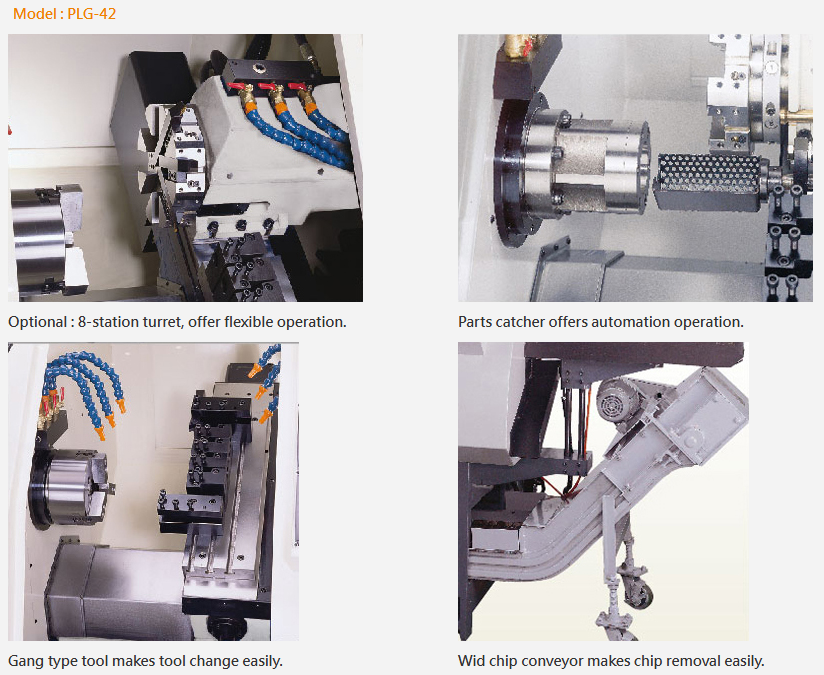

PLG-42: Optional : 8-station turret, offer flexible operation | Parts catcher offers automation operation | Gang type tool makes tool change easily | Wid chip conveyor makes chip removal easily

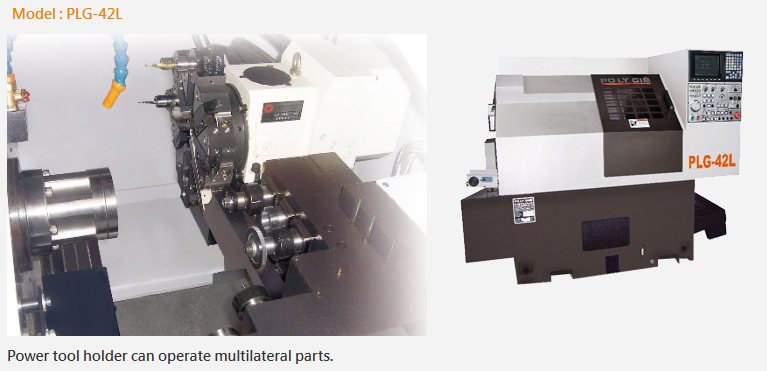

PLG-42L: Power tool holder can operate multilateral parts

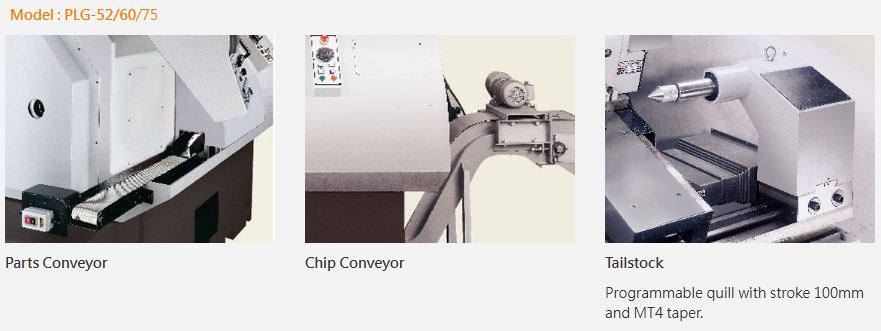

PLG-52/60/75: Parts Conveyor | Chip Conveyor | Tailstock (Programmable quill with stroke 100mm and MT4 taper)

Introduction

Introducing our premier Turning Lathe Machines, designed for both speed and precision. Our lineup includes models like PLG-42/42L/52/60, all engineered to meet diverse manufacturing needs. With state-of-the-art control systems and versatile functionality, these machines excel in a variety of applications. Whether it's heavy-duty turning or intricate detailing, you can count on our Turning Lathe Machines for reliable, top-notch performance.

Model: PLG-42

Optional : 8-station turret, offer flexible operation.
Parts catcher offers automation operation.
Gang type tool makes tool change easily.
Wid chip conveyor makes chip removal easily.

Mdel: PLG-42L

Power tool holder can operate multilateral parts.

Model : PLG-52/60/75

Parts Conveyor
Chip Conveyor
Tailstock (Programmable quill with stroke 100mm and MT4 taper.)

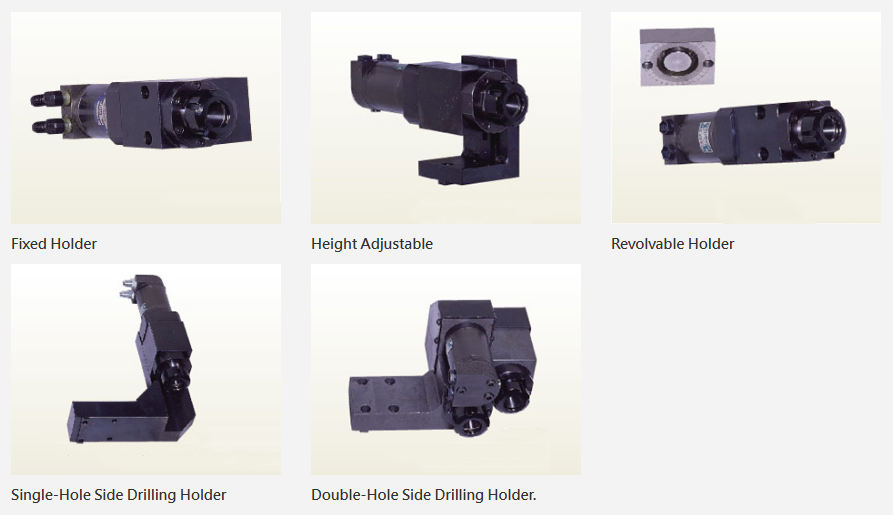

Power Tools Series

Any of hydraulic parts below is optional accessory to satisfy users' every option.

PLG-42L with Y axis and 4 pcs cross driven tool holder

Tool configuration A

Tool configuration B

Diagram of working stroke

Standard Accessories

Controller : Mitsubishi (1 set)
3-jaw hydraulic chuck (1 pc)
Foot chuck switch (1 pc)
Working Light (1 pc)
Tools & tool box (1 set)
Coolant system (1 set)
Gang type tool disc (1 pc)
Leveling bolts and pads 6 pcs (type 42 with 4 pcs)
Boring tool holder (3 pcs)
O.D turning upper and lower tool holders (4 pcs)
Tool holder bushing: PLG-42(2 pcs/ea) ( 8mm, 10mm, 12mm, 16mm, 20mm)
Tool holder bushing: PLG-52/60/75(2 pcs/ea) (8mm, 10mm, 12mm, 16mm, 20mm, 25mm)

Optional Accessories

PLG-42/52/60/75: 8-stations hydraulic turret, Chip conveyer+Bucket, Part catcher or Part conveyor, Tail-stock (movement is manual )
PLG-42L: 8-position servo turret, 2 pcs radial drilling tool holder, 3 pcs axial drilling tool holder, Parts conveyor, Chip conveyor+Bucket

Specification

Items	PLG-42	PLG-42L	PLG-52	PLG-60	PLG-75
Max. machining dia. (with 3 jaws chuck)	Ø130 mm	Ø130 mm	Ø300 mm	Ø380 mm	Ø380 mm
Max. machining length	Bar diameter x 3	Bar diameter x 3	Bar diameter x 3	Bar diameter x 3	Bar diameter x 3
(with tail-stock) -Gang Type	220 mm	220 mm	480 mm	480 mm	480 mm
(Opt. Turret)	160 mm	160 mm	420 mm	400 mm	400 mm
Swing	160 mm	160 mm	200 mm	200 mm	200 mm
X Axis Travel	230 mm	300 mm	310 mm	310 mm	300 mm
Z Axis Travel	250 mm	250 mm	520 mm	520 mm	520 mm
(Opt. Radial Power Tools)	-	190 mm	-	-	-
Spindle Hole	55 mm	55 mm	60 mm	85 mm	85 mm
Bar Capacity	42 mm	42 mm	52 mm	60 mm	75 mm
Spindle Nose	A2-5	A2-5	A2-6	A2-6	A2-8
Spindle Chuck	6"	6"	8"	10"	10"
Spindle Motor	5.5kW/7.5HP	5.5kW/7.5HP	7.5kW/10HP	11.5kW/15HP	11.5kW/15HP
X axis Motor	1kW	1kW	1.5kW	1.5kW	1.5kW
Z axis Motor	1kW	1kW	1kW	1kW	1kW
Axial / Radial Power Tools Motor (Opt.)	-	4kW	4kW	4kW	4kW
Driven Tools Motor for Power Turret	2.2kW/3HP	2.2kW/3HP	3.7kW/5HP	3.7kW/5HP	3.7kW/5HP
Spindle Speed	100-6000 r.p.m.	100-6000 r.p.m.	100-4000 r.p.m.	100-3500 r.p.m.	100-3000 r.p.m.
Rapid traverse (X, Z axes)	16 m/min	16 m/min	12 m/min	12 m/min	12 m/min
Min. Input Unit	0.001 mm	0.001 mm	0.001 mm	0.001 mm	0.001 mm
Cutting Tool Size (Opt. Power Turret)	□20/□16 mm	□20/□16 mm	□25/□20 mm	□25/□20 mm	□25/□20 mm
Max. Bore Size of Tool	Ø25 mm	Ø25 mm	Ø32 mm	Ø32 mm	Ø32 mm
Coolant Pump Motor	1/4 HP	1/4 HP	1/4 HP	1/4 HP	1/4 HP
Machine Dimension (without Chip Conveyor)	215x143x199 cm	215x158x199 cm	263x170x194 cm	263x170x194 cm	263x170x194 cm
Machine Weight	1780 kgs	1850 kgs	3000 kgs	3180 kgs	3280 kgs

* We reserve the rights to change the design without any prior notification.
